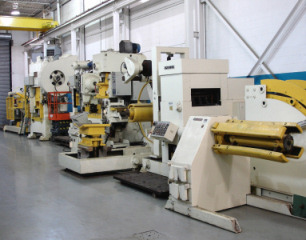

We sell refurbished press room equipment; including presses, feeders, uncoilers, and straighteners.








S&A Equipment for Sale

S&A Industrial: Equipment for sale



Item #1 -                 Bliss Press (50 Ton Straight Sided)

Item #2 -                 Kliesinger Press (60 Ton C-Frame)

Item #3 -                 250 Ton Clearing Straight Sided

Item #4 -                 Aida Press (Approximately 110 Ton C-Frame.)

Item #5 -                 Minster Press (Approximately 120 Ton Straight Sided)

Item #6 -                 250 Ton Raster Straight Sided and Feed Line





Item #1 -                 Bliss Press (50 Ton Straight Sided)



Press Specs:   Double Crank

1½” Stroke

2” Ram Adjust

Vari-Speed 30 to 150 SPM

24” x 24” Bed size

24” x 24” Ram size

Mechanical roll feeder included

New press controls (complies with new CSA press safety code #Z142-02)

Very good condition





Item #2 -                 Kliesinger Press (60 Ton C-Frame)



Press Specs:   Single Crank

5” Stroke

4” Ram Adjust

SPM - 60

30” x 24” Bed size

14” x 18” Ram size

New press control comply with the new CSA press safety code (#Z142-02)

Very good condition





Item #3 -                 250 Ton Clearing Straight Sided



Press Specs:   Double Crank

10” Stroke

6” Ram Adjust

45 SPM

48” x 72” Bed size

48” x 72” Ram size

New press controls (comply with the new CSA press safety code #Z142-02)

Very good condition





Item #4 -                 Aida Press (Approximately 110 Ton C-Frame.)



Press Specs:   Single Crank

5” Stroke

4” Ram Adjust

Vari-Speed 30 to 90 SPM

48” x 24” Bed size

24” x 24” Ram size

Hydraulic O/L installed

New press controls (complies with new CSA press safety code #Z142-02)

Very good condition





Item #5 -                 Minster Press (Approximately 120 Ton Straight Sided)



Press Specs:   Double Crank

3” Stroke

4” Ram Adjust

Vari-Speed 30 to 90 SPM

36” x 48” Bed size

36” x 48” Ram size

New press controls (complies with new CSA press safety code #Z142-02)

Very good condition

Servo roll feeder c/w controls   (optional)





Item #6 -                 250 Ton Raster Straight Sided and Feed Line:



Press Specifications:

                                                                                    mm                   inch

1)  Width between columns                                           2200                86.6

Length              2000                78.7

2)  Bed Area                                        Depth               1000                39.3

Length              1900                74.8

3)  Ram Area                                       Depth                 800                31.4

Length              1900                74.8

4)  Effective Die Space             Depth               1000                39.3

     (Bolster Dia. Actual                                                 1900 x 1111    74.8 x 43.7

5)  Window Openings                           Length              1600                62.9

Depth                 300                11.8

6)  Opening in Bolster                           Length              1600                62.9

Depth                 300                11.8

      Counter Milled                                                         400 x 1700    15.75 x 66.9

7)   Ram Stroke                                                              150                  5.9

8)   Shut Height Adjustment up                           650                23.6

      Stroke           Down

9)   Shut Height Adjustment Down                                  500                17.7

      Stroke          Down

10) Ram Adjustment                                                       150                  5.9

11) Window Opening                           Width                 620                24.4

      Above Bolster                                Height                450                17.7

12) Strokes per Minute                                         30-150

13) Power Required                                                         50 kW

14) Height of Bed Above Floor                                    1200                47.2

15) Front & Back sliding guard doors

16) New Press Controls as per attached electrical control data.



Feeder Specifications:

1)   Feed Length                                   max                    450 mm

min                      00 mm

2)   Strip Width                                    max                    450 mm

min                      10 mm

3)   Strip Speed                                    max                     45 m/min

4)   Material Thickness             max                        5 mm

min                     0.1 mm

5)   Material Cross Section                   max                    500 mm

6)   Feed Accuracy                                                  +  0,025 mm

7)   Number of Strokes             max                    150 spm

8)   Strip Speed                                    max                      35 m/min, with 120 degree feeding mechanism

9)   Number of Strokes             max                      90 spm, with 120 degrees feeding mechanism

10) Feed Length                                                               10 – 450      .39-17.7

11) Strip Width                                                                20 – 450      .78-17.7

12) Material Thickness Max.                                              5                .196

13) Feed Height Above Bolster                                      240                9.4



Feed Line Also Comes With:

1)  Mandrel type un-coiler

2)  Coil loader

3)  Material Straightener

4)  Material Support Roller Table



PressLink press controls comply with CSA press safety code #Z142-02 and include the following:

1)         Clutch and brake control.

2)         Main motor controls.

3)         Continuous arming circuit, c/w 2 stroke hold down before armed.

4)         Electronic self checking brake monitor.

5)         Motion detection monitor system.

6)         Anti tie-down control circuit.

7)         Anti-repeat control circuit.

8)         Four user programmable cam outputs.

9)         Angle display of crank position.

10)       Operator interface and fault display touch screen.

11)       Operator controls (Allen Bradley)

12)       Heavy duty resolver.

13)       Oil and dust tight type enclosure.

14)       Electrical controls instruction/user manual.

15)       Batch counter.

16)       New palm button tee-stand

17)       Clutch/brake valve. Dual 1”solonoid, high flow.

18)       8 point integral die protection system. Includes sensor interface module.
